EXP2 Submission

 To Terrence,

     I apologise for my poor attendance and engagement in the weekly tutorials. I know this isn't really an excuse but I was going through a rough time during this course and didn't reach out because I thought it would affect my progress. Nevertheless thank you for taking the time to have a look at my submission and my other work.

SketchUp Model Names: JeremyYang_ARCH1101_EXP2 Bridges &  JeremyYang_ARCH1101_EXP2 School Wings

EXP2 Submission

Images from SketchUp via SU Podium

Axonometric and Perspective Animation

Axonometric

Perspective

Wk 10 Textures

Wk 8 Floor Sections and Plans

Wk 7 Website, Words and Theory

News Article: Bjarke Ingels Group Completes Its First Public School, Architectural Digest

Website: https://www.architecturaldigest.com/story/bjarke-ingels-group-completes-first-public-school

Keywords: Merge, envisioned, intuitive, spaces,

Theory Statement

The merge of knowledge and experience within local and enclosed spaces is envisioned by the intuitive circulation of form and function

Wk7 Single Point Perspectives

Sketch Up Model Circulation Cross

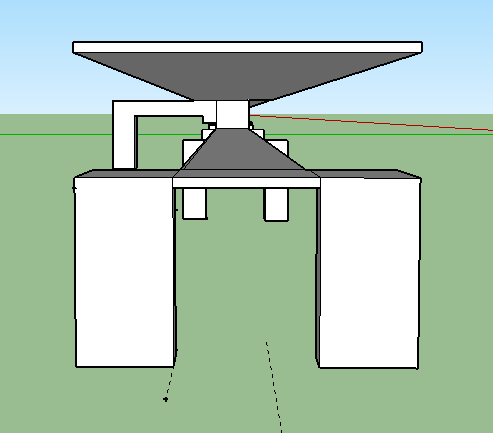

Perspective point 1

Perspective Point 1 Sketch

Perspective Point 2

Perspective Point 2 Sketch

Perspective Point 3

Perspective Point 3 Sketch

Sketch Up Model CC with added mass

Wk 6 Bridge Precedent

Bridge Precedent

Zhangjiajie Glass Bridge

Location: Wulingyuan District, Zhangjiajie, Hunan, China

Total length: 430 m

Clearance below: 300 m

Height: 360 m (1,180 ft)

Opened in August 20, 2016

Main Materials

-Reinforced (Compressed) Glass

-Pretensioned/Post-tension Concrete

-Steel

To build the bridge, engineers erected 4 support pillars on the edges of the walls of the canyon. The bridge is made of a metal frame with more than 120 glass panels. Each of these panels is 3-layered and is a 2-inch-thick slab of tempered glass. There are 3 long swings attached to the underside of the bridge. Also there is a provision for making a 285 metres (935 ft) bungee-jump. This is considered to be highest such jump in the world.^[3]

References

1.

2. ^ Shankar (2018-01-19). चीन में कांच का पुल history of glass bridge in china [Glass pull in China history of glass bridge in China]. Cool Thoughts (in Hindi). Retrieved 2018-01-21.
3. ^ Civil Student. "Zhangjiajie Grand Canyon Glass Bridge". PDF. Retrieved 2018-10-24.
4. ^ "World's longest, highest glass bridge to open". Xinhuanet. Retrieved 16 November 2016.
5. ^ 王建芬. "World's longest glass bridge ready to open - Chinadaily.com.cn". www.chinadaily.com.cn. Retrieved 2017-12-26.
6. ^ Nick Mafi. "Why Did the Zhangjiajie Grand Canyon Glass Bridge Suddenly Close?". Architectural Digest. Retrieved 16 November 2016.
7. ^ "World's highest glass bridge to reopen after one-month overhaul". Xinhuanet. Retrieved 11 August 2017.
